Magnification | 5x |
---|---|
Objective Lens Diameter | 21 mm |
Reticle | HCD Corrected Shoot-To Range |
Range Reflective (yards) | 1400 yds |
Range Tree (yards) | 950 yds |
Range Deer (yards) | 750 yds |
Max Angle Reading | + / - 89 degrees |
Linear Field of View | 367 feet/1000 yards |
Angular Field of View | 7 degrees |
Eye Relief | 16 mm |
Length | 4.0 inches |
Width | 1.3 inches |
Weight | 4.8 oz |
HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
---|---|
Red TOLED Display | Optimized for low light. |
.1 Yard Increment Display | Displays .1 yd increments out to 999.9 yards. |
XR Lens Coatings | Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance. |
Diopter | Adjusts for difference in a user's eye. |
ArmorTek | Ultra-hard, scratch resistant coating protects exterior lenses from scratches, oil, and dirt. |
---|---|
Waterproof | O-ring seals prevent moisture, dust, and debris from penetrating for reliable performance in all environments. |
Ranging Format | Range in yards or meters. |

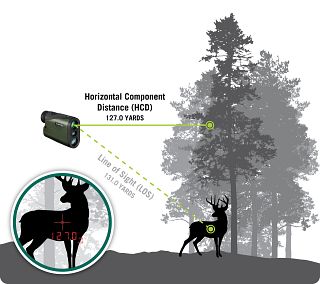

HCD CORRECTED SHOOT-TO RANGE
The Crossfire HD 1400 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
INCLUDED IN THE BOX
- Soft Carry Case
- Wrist Lanyard
- Bungee Cord Lanyard
- Lens Cloth
- Hook and Loop Harness Attachment
- CR2 Battery
