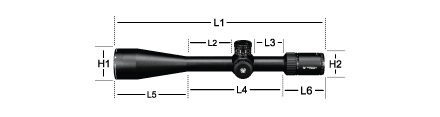

Golden Eagle HD 15-60x52 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 16.1 | 3.5 | 2.28 | 7.5 | 5.51 | 3.09 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.41 | 1.73 |
| Magnification | 15-60x |
|---|---|
| Objective Lens Diameter | 52 mm |
| Reticle | ECR-1 (MOA) |
| Turret Style | Target |
| Tube Size | 30 mm |
| Adjustment Graduation | 1/8 MOA |
| Parallax Setting | 20 to infinity |
| Max Windage Adjustment | 45 MOA |
| Max Elevation Adjustment | 55 MOA |
| Travel Per Rotation | 10 MOA |
| Field of View | 6.3-1.7 ft/100 yds |
| Eye Relief | 3.9 inches |
| Length | 16.1 inches |
| Weight | 29.7 oz |
| Aluminum Grade | Aircraft |
|---|---|
| ASR (Aperature Stop Ring) | Broadens the depth of focus allowing the shooter to more easily observe down range mirage and other wind indicators while keeping the target in focus. |
| APO System | Index-matched lenses correct color across the entire visual spectrum. |
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Multi-Coated | XR™ Plus Fully Multi-Coated |
| HD Lens Elements | HD |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance |
| Shockproof | Rugged construction withstands recoil and impact. |

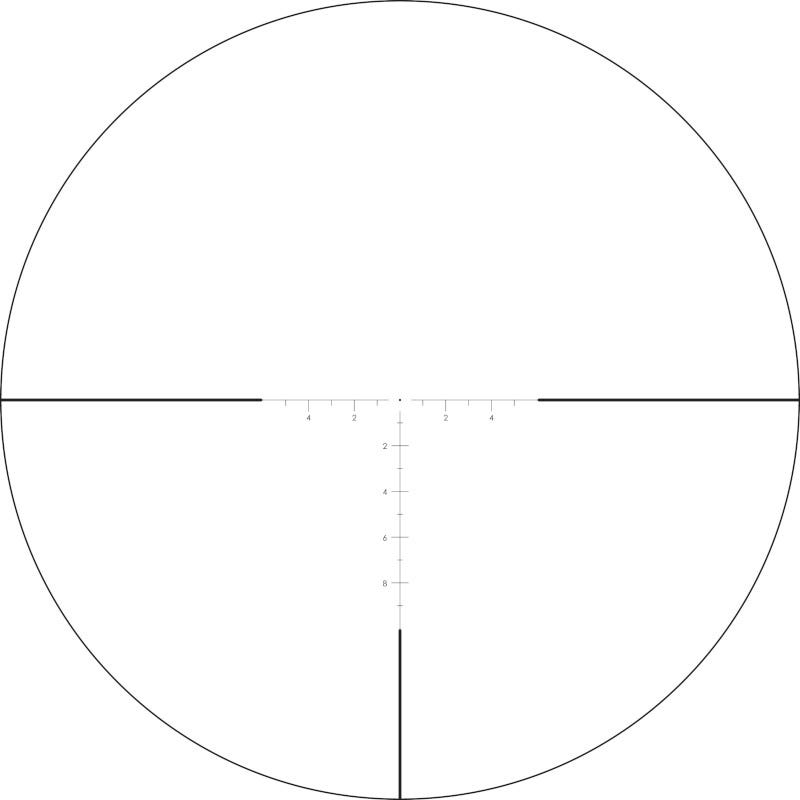

ECR-1 (MOA)
The ECR-1(Enhanced Crosshair Reticle) ) is a hash marked reticle using moa based subtension lines for holdover, and windage corrections. The floating center dot subtends 0.095 MOA at 40X.
INCLUDED IN THE BOX
- Lens Cloth
- 2mm Hex Wrench
- 35mm ASR (Aperature Stop Ring)
- Extra windage turret with alternative laser markings
- Aluminum objective and eyepiece lens covers
- 3" Sunshade
