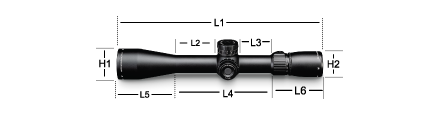

Razor HD LHT 3-15x42 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 13.3 | 2.6 | 2.0 | 6.2 | 3.7 | 3.4 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.0 | 1.7 |
| Magnification | 3-15x |
|---|---|
| Objective Lens Diameter | 42 mm |
| Reticle | HSR-5i (MOA) |
| Turret Style | Capped |
| Tube Size | 30 mm |
| Adjustment Graduation | .25 MOA |
| Parallax Setting | 20 yards to infinity |
| Max Windage Adjustment | 80 MOA |
| Max Elevation Adjustment | 80 MOA |
| Travel Per Rotation | 15 MOA |
| Field of View | 35.3-7.0 ft/100 yds |
| Eye Relief | 3.8 inches |
| Length | 13.3 inches |
| Weight | 19.1 oz |
| Aluminum Grade | Aircraft |
|---|---|
| APO System | Index-matched lenses correct color across the entire visual spectrum. |
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Multi-Coated | XR™ Plus Fully Multi-Coated |
| HD Lens Elements | HD |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| Shockproof | Rugged construction withstands recoil and impact. |
HSR-5i (MOA)
Ideal for those who want enough information to utilize personalized ballistics, but prefer a clean look. The HSR-5i reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads. The fine center crosshair subtensions on the HSR-5i reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility.

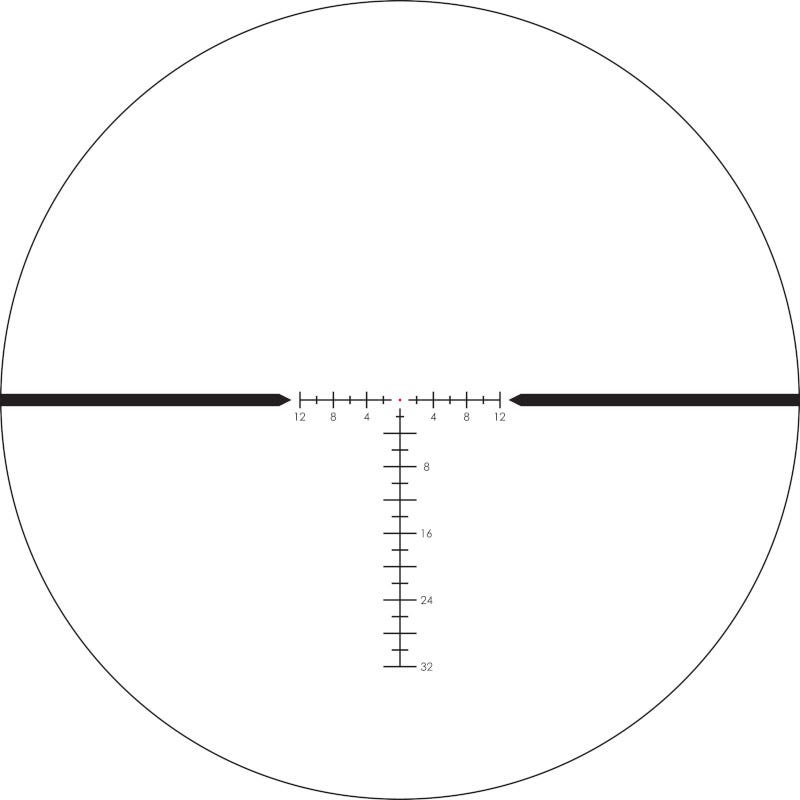

Reticle image shown at 15x magnification
INCLUDED IN THE BOX
- Sunshade
- Lens Covers
- Lens Cloth
- CR2032 battery
- Free Custom Ballistic Strip Coupon
