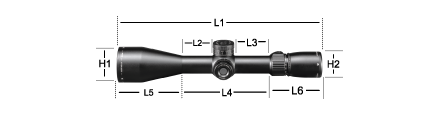

RAZOR® HD LHT™ 4.5-22X50 FFP

Western hunting demands an optic built for long range and the long haul, and the Razor® HD LHT™ 4.5-22x50 FFP delivers. You still get the core of the Razor® HD LHT™, including a stunning HD optical system and rugged build in a hunting scope that’s among the lightest in its class. Where the Razor® HD LHT™ 4.5-22x50 FFP distances itself is in offering more magnification, and a first focal plane reticle featuring the XLR-2 reticle system, which is intuitive, easy to use, and illuminated. You also get our RevStop™ Zero System for a reliable return to zero after dialing in the field, and a locking elevation turret keeps your zero safe.

Razor HD LHT 4.5-22x50 FFP Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
13.3	1.9	2.2	5.6	3.4	4.2

Heights
H1	H2
2.3	1.7

Magnification	4.5-22x
Objective Lens Diameter	50 mm
Reticle	XLR-2 (MOA)
Turret Style	Capped
Tube Size	30 mm
Adjustment Graduation	1/4 MOA
Parallax Setting	25 yards to infinity
Max Windage Adjustment	45 MOA
Max Elevation Adjustment	75 MOA
Travel Per Rotation	15 MOA
Field of View	23.5-4.7 ft/100yds
Eye Relief	4.0 inches
Length	13.3 inches
Weight	21.7 oz
Elevation Travel Per Rotation	15 MOA
Windage Travel Per Rotation	15 MOA

Aluminum Grade	Aircraft
APO System	Index-matched lenses correct color across the entire visual spectrum.
ArmorTec®	Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Multi-Coated	XR™ Plus Fully Multi-Coated
HD Lens Elements	HD
Shockproof	Rugged construction withstands recoil and impact.



XLR-2 (MOA)

The XLR-2 reticle is an illuminated, long-range reticle with elevation and windage reference subtensions. Great for long-range shooters and hunters who prefer to hold for bullet-drop and wind at distance.

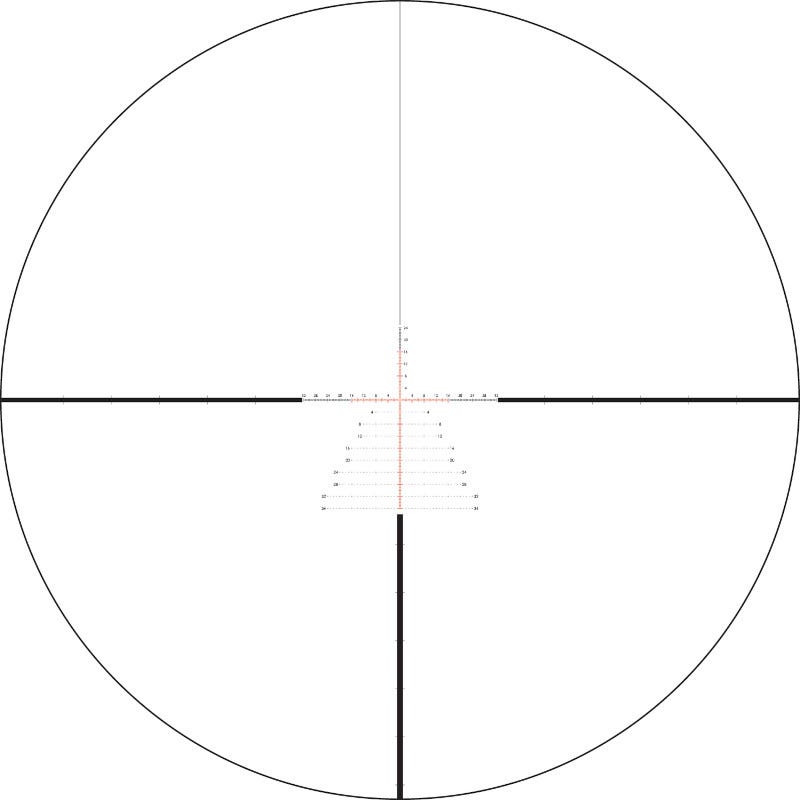

Subtension detail for Razor HD LHT 4.5-22x50 FFP riflescope with XLR-2 MOA reticle.

INCLUDED IN THE BOX

• Tethered Lens Covers
• Sunshade
• Lens Cloth
• RevStop Zero Ring
• CR2032 Battery
